Streaming Media Box HR-GT1205A

Streaming Media Box  for IPTV & OTT Projects

HR-GT1205A

Streaming Media Box Features:

1. Connect to the Internet with a full Android browser to access any website for entertainment, information or education.
2. Watch YouTube, Netflix, Hulu, Amazon, or any local video sites and even video-on-demand services.
3. Chat with Facebook or twitter and use Skype for video conferencing (need a USB camera).

4. Access Android app-stores to download, install and run the huge number of Android applications available.
5.  Stream 4K 2K and HD video, music and display images from local memory or from any computer on the home LAN network (wireless DLNA)
6. Support smart phone control functions

7. Unique design
8. Infared remote control: it operate by  Infared remote control , you can fix the  receiver  everywhere  within the operate range
9.  With HDMI connector, you just need connect it with your TV HDMI ports and don't need any other cable

10. Built-in WIFI; support 802.11b/g/n

11. Support USB mouse and keyboard operation and 2.4G QWERT Remote (optional)

Streaming Media Box Specification：

1.CPU: Amlogic S802, Quad Core ARM cortex-A9 up to 1.6 GHz
2.Operation System:Android 4.4
3.RAM:1GB DDR3
4.EMMC Flash: 4GB, 8GB(Optional), 16GB(optional)
5.GPU:Octa Core Mail 450,Open GL ES 1.1&2.0

6.Graphic:Support Graphic Accelerator
7.External storage: USB 2.0 storage Devices,  Micro SD card (Up to 32GB)
8.System Upgrading:By u-disk or SD card or online(TODO)
9.Local Media Playback:Video/Audio/Picture

10.Streaming Media Box Hardware decoding:
-Video Decoding:MPEG 1/2/4,DivX®/Xvid,H.264,VC-1,WMV3,RMVB 8/9/10,M-JPEG
-Audio Decoding:MP3,PCM,AAC/AAC+,WMA,MPEG Audio,Vorbis ,Real Audio,Flac,APE,ALAC,AC3®,DTS®
-Imagic:JPG/JPEG, BMP,GIF,PNG

11.Supported: Mricast, DLNA, 1080P, UP to 4K x 2K@30,Bluetooth(Optional)

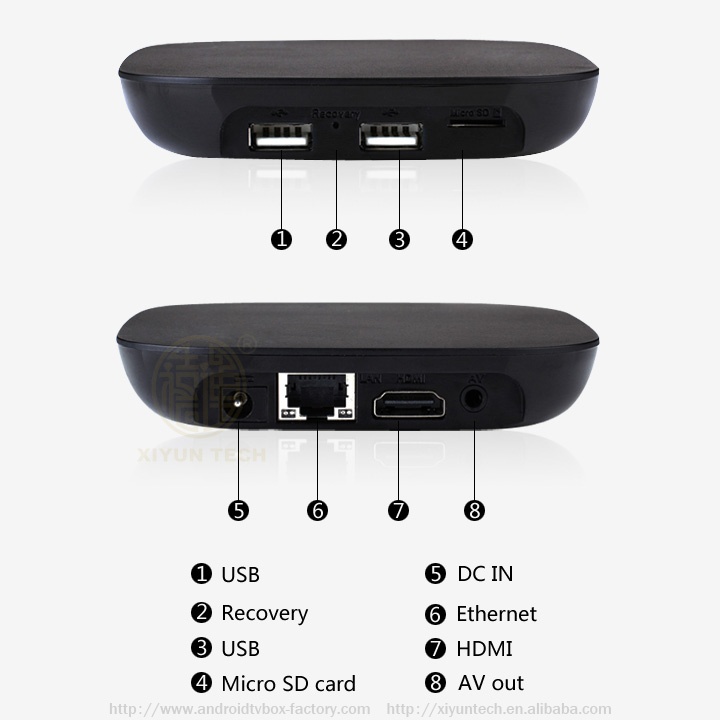

12.Interface :
-HDMI 1.4*1, 720p, 1080p, up to 4Kx2K@30 (AV)480i; 576i
-USB 2.0*2
-DC IN *1
-Micro SD card  *1
-Ethernet *1
-3.5mm AV out *1

Streaming Media Box Packing:

1.Unit Size: 107*107*20 mm ;
2. Gift box size: 212 x 136 x 73 (mm), Box Weight 510 g
3.Quantity: 30 pcs /Carton;
4.Carton Size:446 x 428 x 400(mm);
5.Carton Weight: 17.9 kg
6.20' GP: 9.75 K; 40' GP: 20.25 K; 40' HQ: 24.3 K (without pallets)

Company overview:

Certifications:

Test:

Our service:

Xiyun could do for you:

1) Install your APK on our android box and set your APK launcher as default .
2) Set your logo as boot & animated logo.
3) Develop firmware with your APK and upgrade it with your new APK..
4) Provide sign tool, after making signature on software with your new APK, you change the APK from software package by yourselves easily.
