Android Hybrid TV Receiver Box HR-GTS28

Android Hybrid TV Box Support DVB-S2  for IPTV Box Operators

HR-GTS28

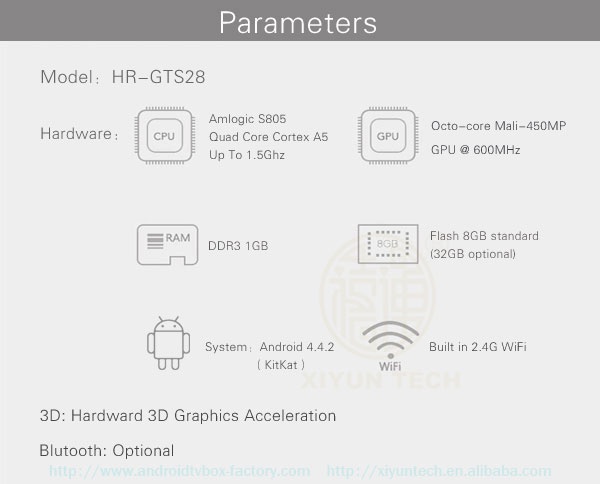

Android Hybrid TV Box Main Features

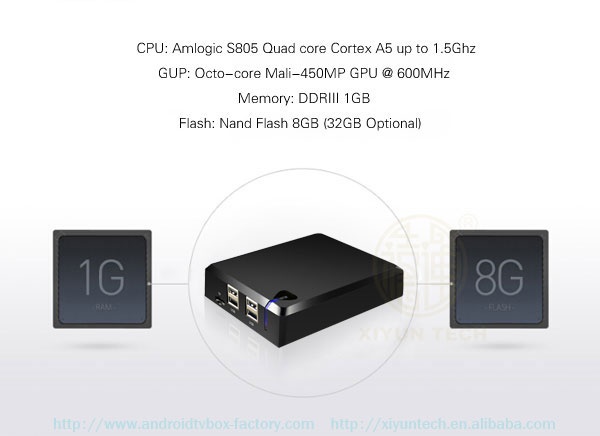

1. CPU: Amlogic S805 Quad core Cortex A5 up to 1.5Ghz

2. GUP: Octo-core Mali-450MP GPU @ 600MHz

3. 3D: Hardward 3D graphics acceleration

4. Memory: DDRIII 1GB

5. Flash: Nand Flash 8GB (32GB Optional)

6. WiFi: Built in 2.4G WiFi

7 .Blutooth: Optional

8. IR: Infra Remote control

9. LED Indicator: Power ON :blue; Standby :Red

10. Mould: Private Tooling

11. 3G: Support most external 3G USB dongle

12. HDMI 1.4: 1080P Support

13. 4*USB HOST: 4 High speed USB 2.0,support U DISK and USB HDD

   1*TF CARD: Support 1~32GB

   1*AV: AV output

   1*SPDIF: Audio output

   1*RJ45: 10/100 BaseT

14.Power: DC Adapter ( 12V/1A)

   1*RF IN: DVB  RF IN

   1*RF OUT: DVB  RF LOOPOUT

15.CCCam: Support

16.Newcamd: Support

17.Biss: Support DVB-S2

   DEMO:AVL6211

  TUNER:AV2012

18.DVB-S2 system standard:ETS 302 307

19.Symbol Rates: QPSK,8PSK

20.Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10

21.Carrier frequency acquisition range: ±5MHz for symbol rates above 3

Msps and ±3MHz for the remaining symbol rates

22.Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35

23.Symbol Rates: 1- 55 Msps

24.Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8

25.Input Signal level: -84 dBm to  0 dBm (average power)

26.ANT. Connector:IEC TYPE, female Loop Outpur:IEC TYPE, male

Digital TV Receiver Specifications

1.OS: Android 4.4.2 （KitKat）
2.Decoder: HD MPEG1/2/4,H.265/HEVC , HD AVC/VC-
1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10
3.Video: AVI/RM/RMVB/TS/VOB/MKV/MOV/ISO/WMV/ASF/FLV/DAT/MPG/MPEG
4.Music: MP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS/HD/FLAC/APE
5.Photo: HD JPEG/BMP/GIF/PNG/TIFF
6.Adobe Flash: Adobe Flash 10.1 support or above
7.Support Language: Chinese , English ,Germany ,Japanese, Korea  etc.  24 languages
8.WiFi Hotpoint: Support
9.Mouse/ Keyboard:

    Support mouse and keyboard via USB
    Support 2.4G wireless mouse and keyboard via 2.4G USB dongle
10.XBMC: Support local high-definition play, support plug-in installation and play
11.DRM: Optional :Microsoft Playready，Verimatrix ,Google Widevine
12.Others: support DLNA \AirPlay \Google TV Remote \LAN \Miracast \3D moive
13.Online: Browse all  video websites ,support  Netflix ,Hulu ,Flicker,  Picasa, Youtube, Twitter, Facebook,etc

14.Apps: Apps download  freely form  android  market 、amazon appstore etc
15.Medium: Local Media playback,support HDD, U disck ,SD card
16.Talk online: Support  SKYPE video  call  , facebook ,twitter ,Netflix,Youtube ,  etc
17.Others: Support   Email , office suit etc

Android Hybrid TV Box Packing

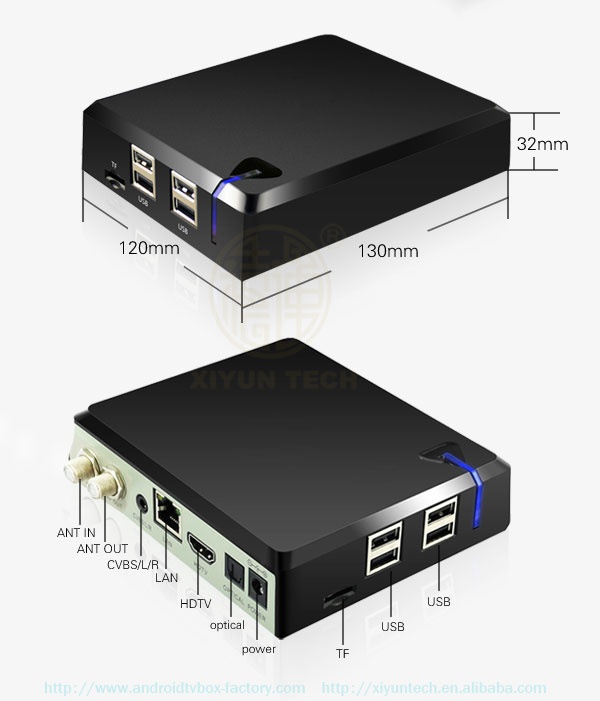

1.product dimension:130*120*32MM
2.qty per unit packing:1pc unit packing: (LxWxH):230*157*70mm
3.unit packing (G.W.):0.65kg
4.qty per export carton:20pcs
5.export carton (WxHxL):480*375*335mm
6.export carton (G.W.):13.5kg ±0.5"
