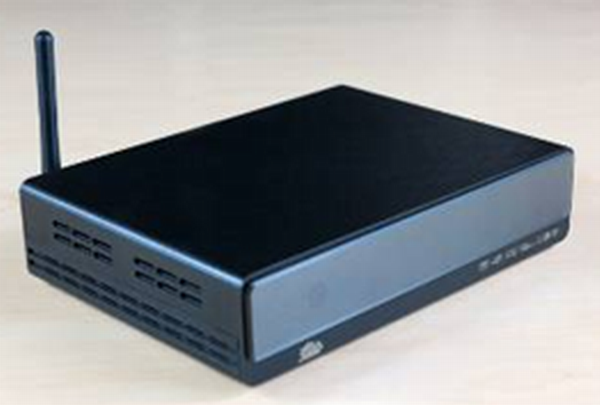

Android 4.2 TV BOX + HD DVB-S2 function with CCCAM/NEWCAM/BISS function

Main Features

1. OS Android 4.2.2
2. CPU AML8726-MX  Up to 1.5GHz ARM Cortex Dual-core A9 + 1080P Media+Dual-3D GPU
3. GUP Mali-400 GPU
4. Memory DDRIII 1GB
5. Flash Nand Flash 4GB (Support 8GB、16GB、32GB)
6. WiFi  802.11 b/g /n
7. IR Infra Remote control
8. Mould Many shell mold
9. LED display Support
10.DVB-S2 DEMO:AVL6211
   TUNER:AV2012
   DVB-S2 system standard：ETS 302 307
   Symbol Rates: QPSK,8PSK
   Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
   Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
   Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
   Symbol Rates: 1- 55 Msps
   Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8
   Input Signal level: -84 dBm to  0 dBm (average power)
   ANT. Connector:IEC TYPE, female Loop Outpur:IEC TYPE, male
11. 3G Support most external 3G USB dongle
12. Power DC input  12V/1.5A
13. I/O 1*HDMI 1.4a Up to 1080p resolution
     2*USB HOST Host  usb port
     1*TF CARD SUPPORT 1~32GB
     1*AV or  Y/Pb/Pr Standard resolution AV or Y/Pb/Pr signal
     1*SPDIF Coaxial
     1*RF IN DVB  RF IN
     1*RF OUT DVB  RF LOOPOUT
     1*RJ45 10/100 BaseT
     1*Power input 12V/1.5A

Specifications

1. Video MKV,WMV/VC-1 SP/MP/AP,MPG,MPEG,dat,avi,mov,iso,mp4,rm,H.264,realVideo 8/9/10, up to 1080P
2. Audio MP3,AAC,WMA,RM,FLAC,OGG
3. Picture jpg,JPEG,MJPEG,PNG
4. Adobe Flash Adobe Flash 10.1 support or above
5. Support language Chinese , English ,Germany ,Japanese, Korea  etc.  24 languages
6. Miracast Mirroring the screen of phone or PAD to TV
7. DLNA Pushed the video, audio, pictures from phone or network to TV
8. AirPlay Pushed the video, audio, pictures from IPHONE or IPAD to TV
9. GoogleTV Remote Through wi-fi network to realize control the product
10. LAN Through the LAN, can check other devices to share information
11. 3D moive Support 3D movie
12. Motivator air-mouse Support the body feeling game, such as playing tennis, paper planes, shooting, etc
13. Online Browse all  video websites  ,support  Netflix ,Hulu ,Flixster , youtube etc
14. Apps Apps  download  freely form  android  market 、amazon appstore etc
15. Medium Local Media playback,support HDD, U disck ,SD card
16. Talk online Support  SKYPE video  call ,MSN , facebook ,twitter ,QQ  etc
17. Others Support wifi hotpiont ,could  be as a  wireless  router
18. Support  XBMC, Email , office suit etc
19. Support  CCCAM/NEWCAM/BISS (optional, + USD5.00)

Packing

1. product dimension :175*142*40mm
2. qty per unit packing :1pc
3. unit packing: (LxWxH) :212*220*54mm
4. unit packing (G.W.) : 0.33kg
5. qty per export carton : 28pcs
