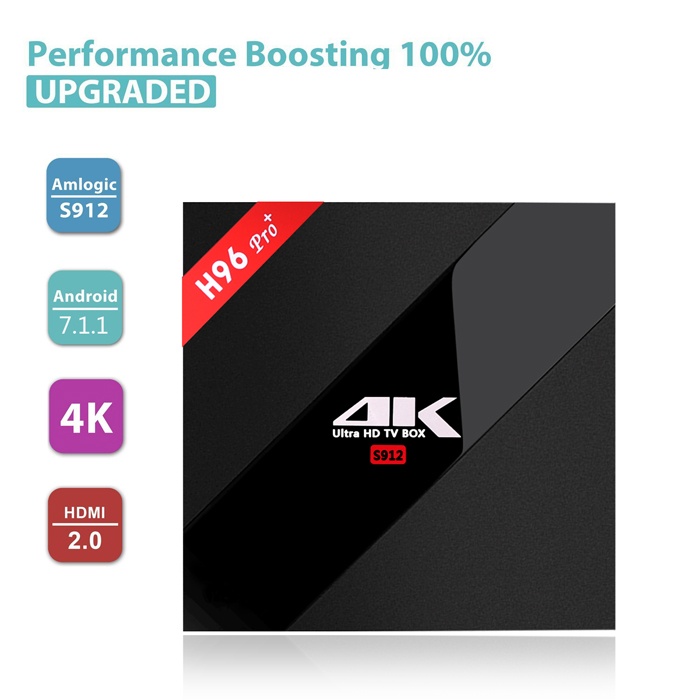

H96 Pro Plus Amlogic s912 Octa Core TV Box

  • Description:H96 PRO plus Android 7.1.1 OS AMLOGIC s912 Chips set top box is H.265 4K Player,supports Dolby Vision, HDR10 and HLG HDR processing.2GB+16GB,2GB+32GB,3GB+32GB version are optional for this H96 PRO PLUS model.
  • CPU:Amlogic S912 Octa core ARM Cortex-A53 CPU up to 2GHz (DVFS)
  • GPU:ARM Mali-T820MP3 GPU up to 750MHz (DVFS)
  • System:Android 7.1.1 OS
  • RAM:2GB DDR3
  • ROM:16GB EMMC Flash (8-32GB optional)
  • Interface:!* HDMI Out,1XUSB host + 1XUSB OTG,1XSPDIF, 1XAV,1X Micro SD card (TF card) reader, 1xRJ45 LAN Port, 1x5V2A DC
  • Detail

  • Contact Us

H96 Pro Plus Amlogic s912 Octa Core TV Box


Model No.: H96 pro+(2G+16G)  H.264-H.265 4Kx2K 60FPS    Android TV BOX    HDMI 2.0

Android OS: Android 7.1.1 OS

CPU:  Amlogic S912 Octa core ARM Cortex-A53 CPU up to 2GHz (DVFS)

GPU: ARM Mali-T820MP3 GPU up to 750MHz (DVFS)


Memory size:  16GB  EMMC Flash (8-32GB optional)

Language:  Chinese,English...Multi-Language support

Storage Extension:  Support MicroSD(TF) ,Up to 32GB

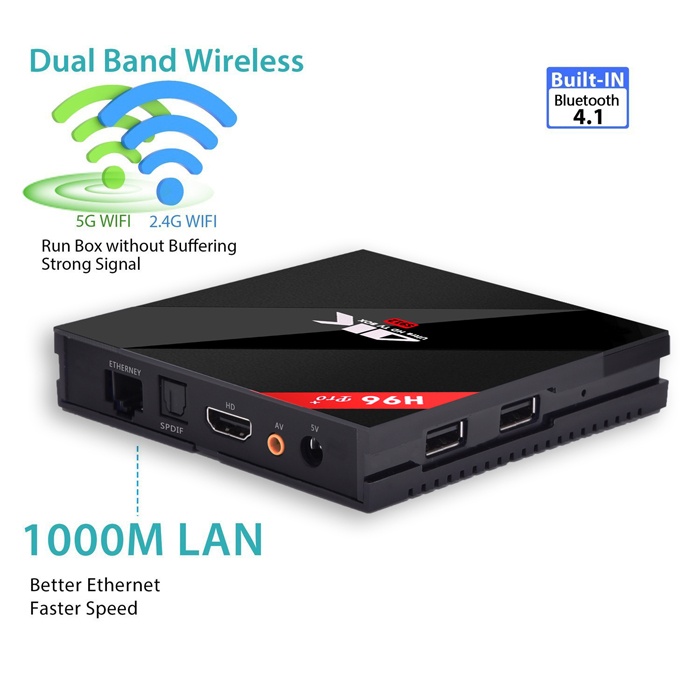

WIFI :  2.4GHZ/5.8GHZ  802.11a/b/g/n /ac

Ethernet Ethernet:  100M/1000M

Bluetooth:   BT4.1

H96 PRO PLUS Media format

HDMI HDMI 2.0 up to 4K2K@60FPS

Video Output "Built-in HDMI 2.0a transmitter including both controller and PHY with HDR, CEC and HDCP 2,2, 4Kx2K@60 max

resolution output"

Video Codecs "o  VP9-10 Profile-2 up to 4Kx2K@60fps

o  H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps

o  H.264 AVC HP@L5.1 up to 4Kx2K@30fps

o  H.264 MVC up to 1080P @60fps

o  MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

o  WMV/VC-1 SP/MP/AP up to 1080P@60fps

o  AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

o  MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

o  MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

o  RealVideo 8/9/10 up to 1080P@60fps

o  WebM up to VGA

o  Multiple language and multiple format sub-title video support

o  MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

o  Supports JPEG thumbnail, scaling, rotation and transition effects

o  Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file "

Image browser:   Support JPG、JPEG、BMP、GIF、PNG、JFIF…etc photo format

Software Extension Support : Google Play & APK install

Protocol Support:  DLNA,Miracast Protocol,Support DRM requirement.

Remote Control Support:  Smart phone remote control、2.4GHZ wireless air mouse/Remote controller

IM Software Support:  Skype/QQ/MSN/GTALK (Depends on APK install)

Offic Software:  WORD/EXCEL/PDF(Depends on APK install)

H96 Pro Plus Interface


USB Port 1XUSB host + 1XUSB OTG



Card Readere 1X Micro SD card (TF card) reader

Network 1xRJ45 LAN Port

Power Supply 1x5V2A DC

H96 Pro Plus Accessories

power  charger *  1

Remote Control *  1

giftbox *1

User Manual *1

HDMI cable*  1

Air mouse optional

wireless mouse optional

H96 PRO PlusH96 PRO Plus TV BoxH96 PRO+H96 PRO Plus 4k

H96 PRO Plus Amlogic S912

H96 PRO Plus Amlogic S912 tv box

H96 PRO Plus Octa core tv box

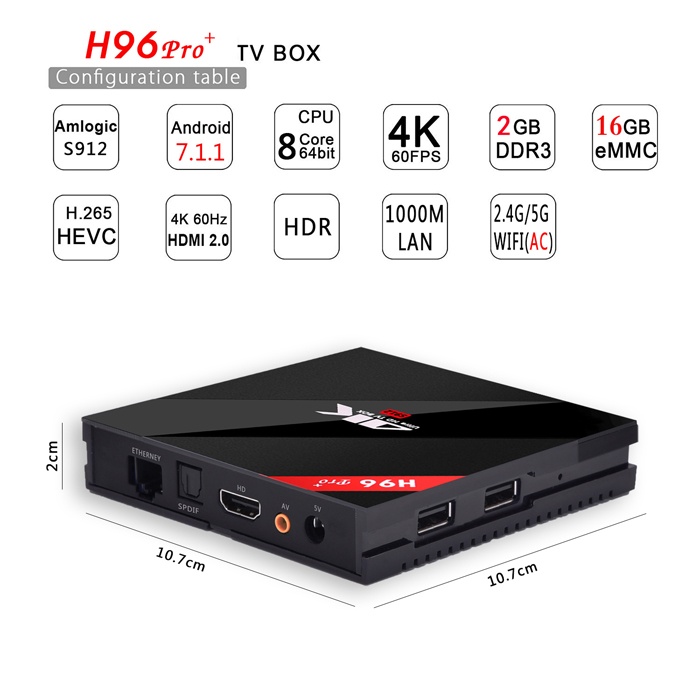

H96 PRO Plus size

H96 PRO Plus EnternetH96 PRO Plus Storage

H96 PRO Plus S912H96 PRO Plus android 7.1.1
