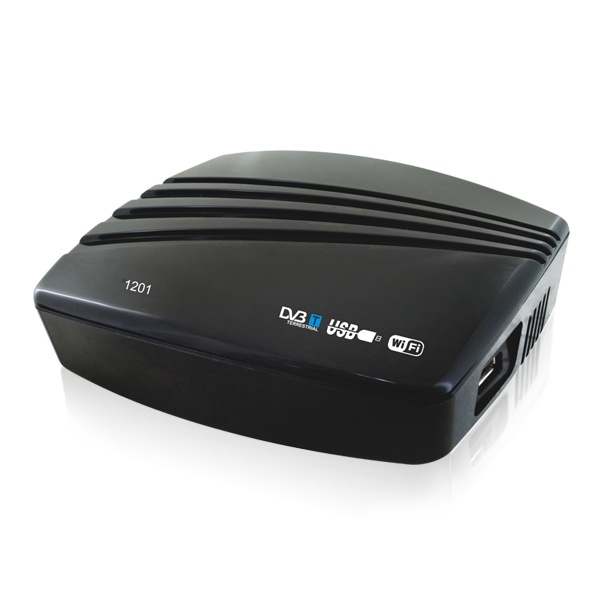

DVB-T ISDB-T Brasil Digital TV Tuner HR-T4503

  • Description:FULL HD ISDB-T RECEIVER WITH USB MEDIA PLAYE,DVB-T ISDB-T,ISDB-T Brasil,ISDB-T Digital TV Tuner,the best tuner for iptv set top box operators.120 mm plastic case, MOQ:2,000.00PCS.Welcome for your order.
  • CPU:H.264 hardware decoding
  • GPU:Novatek 78318 + RT820 tuner H.264 HD ISDB-T Set Top Box Receiver & Audio and Video Output & HDMI & USB2.0 & PVR for Brazil, Chile, Peru, Argentina
  • System:HD ISDB-T STB
  • RAM:DDR2: 512Mb
  • ROM:32Mb
  • Detail

  • Contact Us

DVB-T ISDB-T Brasil Digital TV Tuner HR-T4503
Model number:HR-T4503 (Casing can be optional)
OEM&ODM Support
MOQ: 2,000.00pcs
120MM Mental Case

ISDB-T Digital TV Tuner

ISDB-T Digital TV Tuner Quick details:

Model number:HR-T4503 (Casing can be optional)  OEM&ODM Support
MOQ: 2,000.00pcs
In what color can make: black/white/silver
Front panel: Public
Front Panel Fuctions:Infra-red receiver of remote control, LED indicator to show status of receiver    Solution:Novatek 78318 + RT820 tuner
H.264 HD ISDB-T Set Top Box Receiver & Audio and Video Output & HDMI & USB2.0 & PVR for Brazil, Chile, Peru, Argentina

ISDB-T Digital TV Tuner Features:

1. Main Chip:  Novatek 78318
2. Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video, DiVX compliant
3. Compatible with 576i/576p/720p/1080i video formats
4. Auto and manually scan all available TV and radio channels
5. Aspect ratio 16:9 and 4:3, 1000 channels memory, parental control
6. Audio output: L/R  Stereo output
7. Video output: HDMI output,  Video output
8. Teletext/ Bit Map subtitle, compliant with ETS1,
9. Supported 7-Day EPG function, VBI Teletext
10. Support 6MHz software setting
11. Auto/Manual Program search, Multi-language supported
12. USB 2.0 for PVR, Software upgrade, Multimeida Playback
13. Demodulation: QPSK/16QAM /64QAM/QPSK or DQPSK; OFDM Reception Channel: 13CH-62CH
14. Digital reception covers VHF & HUF band
15. Support for low-power standby, standby power is less than 0.5W
16. TV System: NTSC / PAL M/N/NC
17. 11 diffferent Multi OSD Langages: English, Cesky, Dansk, Francais, Deutsch, Magyar, Espanol/Svensk.etc
18. AC-3, HDCD decoding
19. DC power supply 12V,Power consumption:10W
20. Accessories:User Manual,  Remote control,  A/V Cable
21. ptional Accesssories: Antenna (optional),  HDMI Cable (optional)

ISDB-T Digital TV Tuner Tuner and Demodulation parameter:

1.RF input frequency: 177.143~213.143MHz(VHF)
2.Bandwith: 6MHz
3.Demodulation: QPSK,16QAM,64QAM or DQPSK
4.Code Rate:1/ 2, 2/3, 3/4, 5/6,7/8 Automatic
5.Guard: 1/4, 1/8, 1/16, 1/32
6.FFT Mode: 2K, 4K, 8K

ISDB-T Digital TV Tuner System:

Main processor:NOVATEK 78211
DDR2: 512Mb
Flash:  32Mb

ISDB-T Digital TV Tuner Input and Output:


ISDB-T Digital TV Tuner Power&  Consumption

Consumption in working mode: 5W Max.
Consumption in standby mode: below 1W
AC Power input:   100-240V,50/60Hz

ISDB-T Digital TV Tuner Packing List:

120MM Plastic case:
Standard Accessories (Power adapter, AV line, user manual, remote control)
Gift box Size: 170*55*185mm
Carton Inner size:350*285*195mm;
Outer Size:360*295*210mm (10pcs/carton)
20": 14000PCS
40": 28400PCS
40"HQ: 31000PCS
