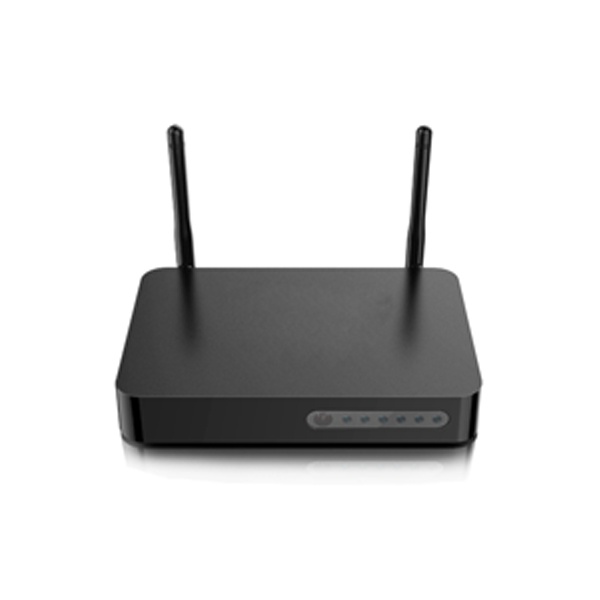

4G LTE Android TV Box With SIM Card Slot and Zigbee

  • Description:HR-G16 is the newest android tv box which with the most attractive features for 4G LTE, battery, also support zigbee smart home solutions! HR-G16 4G LTE Android tv box will give you different experience for smart tv box! Welcome to order the new!
  • CPU:Quad core ARM Cortex-A53 CPU 1.5GHz(DVFS)-AmlogicS905X
  • GPU:Penta-Core Mali-450 up to 750Mhz+
  • System:Android 6.0 or android 7.1 optional
  • ROM:8GB/16GB/32GB EMMC optional
  • Interface:SIM CARD Slot, USB*3, Power DC*1, HDMI PORT, 6 LEDs display
  • Detail

  • Contact Us

OTT box+4G LTE+Zigbee+Battery!!

HR-G16 Features:

1)With 64bit-4 core A53 and Penta core Mali-450 graphics processor, S905X supports 4K@60fps video hard decoding and high dynamic range (HDR) processing and also supports H.265/VP9 10-bit and AVS+ formats and other formats which support HDMI-2.0 content HDCP2.2 content protection.

ott tv box with 4G LTE

     2) flexible configuration, optional DDR3 1G or 2G and Flash(Emmc)8G, or 16G or 32G, Android 6 or 7;

3) With built in 4G-LTE module (QUALCOMM chipset), covered with multi standard and wide range bands which meet the requirements of global main operator LTE network. It is downward compatible with 3G/2G network. It supports downstream rate 150Mbps, upstream rate 50Mbps high speed bandwidth. And also support 4K online video play smoothly.

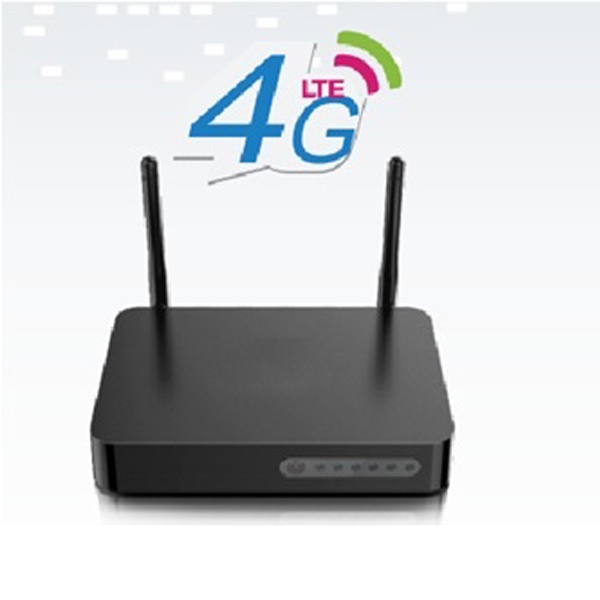

     4g lte tv box

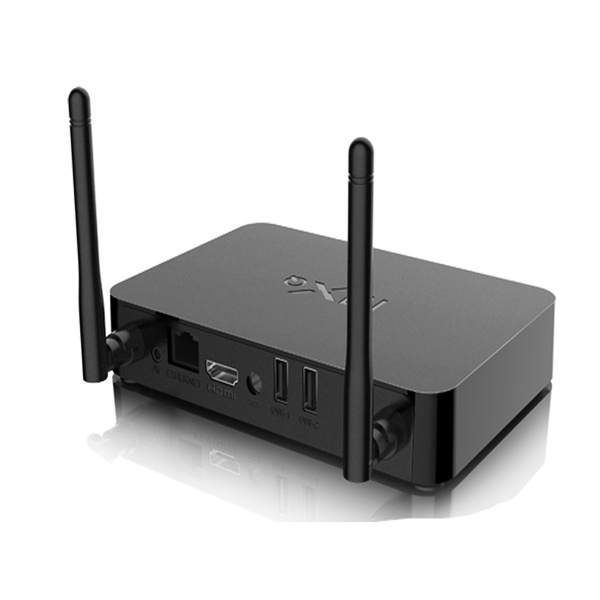

 4) With dual frequency WIFI, 2.4G/5G and dual external antennas, It can provide better signal coverage and better signal through wall.


        5) built-in Zigbee (selection) standard module (TI chipset), to achieve the application of intelligent home network .

4g lte android tv box

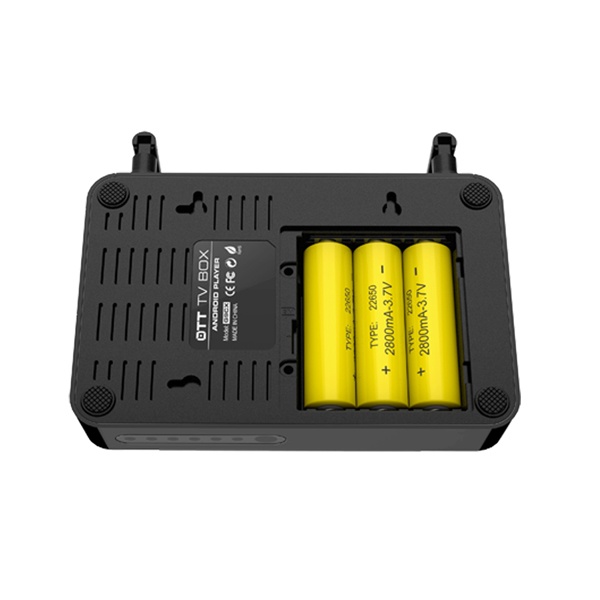

        6) built-in rechargeable lithium battery: 18650 standard battery slot, 1-3 batteries free assemble and free disassembly, the highest capacity can be 8400mAH; also support 18650 battery group;

4G LTE TV Box with battery

7) hidden SIM card slot, Micro-SIM card slot in the battery bin, disassemble the battery cover before replace the SIM card to avoid losing the SIM card.

8) support wall hanging, machine shell with hanging hole design, support horizontal / vertical wall hanging, with the ability to change AV/IR output socket, remote control window can any performance position.

TV Box with battery

9) expansibility: The top housing be customized with printing/ Texturing LOGO, power switch can be added.3 external USB interface can be added. front panel indicator light can reach 6 leds (for multi state indication).

Application scene:

       HR-G16 can be used as OTT, advertising machine, exhibition demonstration machine, 4G-LTE transfer to WiFi router, intelligent home control center and many other applications.

Internal 4G LTE Module(optional)

LTE-FDD/LTE-TDD/WCDMA/TD-SCDMA/EDGE/GPRS/GSM downstream 150Mbpsupstream 50Mbps


B1/B3/B5/B7/B8/B20@FDD LTE



B2/B4/B8/B17@FDD LTE,B38/B39/B40/B41@TDD LTE                      B1/B8@WCDMA,B34/39@TD-SCDMA,                                             900/1800@GSM

B1/B3/B5/B8@FDD LTE,B38/B39/B40/B41@TDD LTE                          B1/B8@WCDMA,B34/B39@TD-SCDMA                                               BC0@CDMA2000 1X/EXDO,900/1800@GSM

B1/B3/B5/B7/B8/B20@FDD LTE;B38/B40/B41@TDD LTE;                  B1/B5/B8@WCDMA;B3/B8@GSM

MHZ-AU(Latin America/ANZ/TAIWAN)
B1/B2/B3/B4/B5/B6/B7/B8/B28@FDD LTE;B40@TDD LTE;  B1/B2/B5/B8@WCDMA;B2/B3/B5/B8@GSM

B1/B3/B8/B18/B19/B26@FDD LTE;B41@TDD


Internal zigbee(optional) Zigbee/ZigbeePRO/ZigbeeRF4CE/6LoWPAN@2400-2483.5MHz
Internal recharge lithium battery(optional) 18650 battery 1-3 pcs or equivalent battery module
